Feautures :

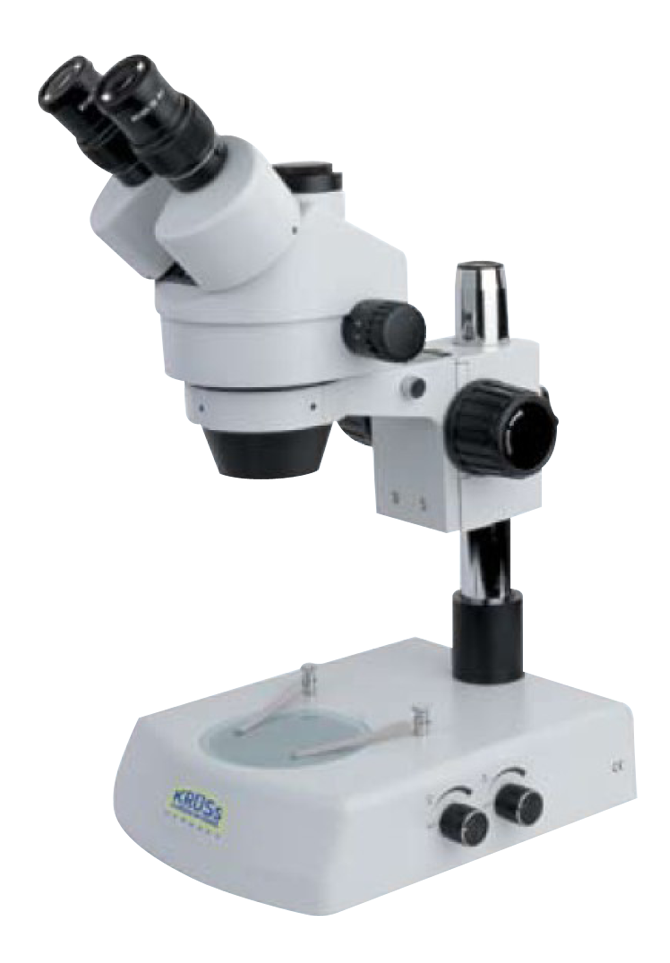

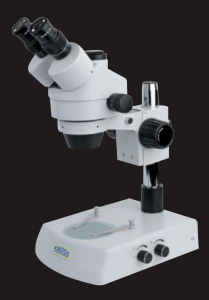

Robust stereo-zoom-microscope for professional use, examination of electronics, precision engineering synthetic/plastic products and medical products.
Used for inspection, assembly, an alysis, soldering and polishing and for precision, and smooth finishing work.
An excellent tool for use in quality control.
Due to large zoom range and excellent depth-focus these allow for pleasant work conditions in many fields of application.
The robust metal housing ensures reliable performance even in a rougher environment.
Zoom feature for continuous magnification settings great depth-focus.
Incident and t ransmitted light (dep. upon features).
With 45° angled view and d ioptre adjustment and adjustable eye- distance from 51 to 75 mm.
Range of vision dia.: 32.8-5. 1 mm.
Power supply: 230 V or 115 V.
| Optical equipment | Equipment | Lighting | Special features | |
| MSZ5000 | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | n/a | Continuous mognification |
| MSZ5000-IL | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | Incident light | Continuous magnification |
| MSZ5000-S | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | n/a | Continuous magnification |
| MSZ5000-S-RL | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | Ring lamp (incident) | Continuous magnification |
| MSZ5000-T | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | n/a | Continuous magnification, third tubular feature to conned to photo and vtdeo camera |
| MSZ5000-T-S | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | n/a | Continuous magnification, third tubular feature to conned to photo and vtdeo camera |
| MSZ5000-T-S-RL | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | Ring lamp (incident) | Continuous magnification, third tubular feature to conned to photo and vtdeo camera |
| MSZ5000-IL-TL | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | 12 V 20 W incident and transmitted light, continuously odjustable | Continuous magnification settings |
| MSZ5000-T-IL-TL | Stereo-Microscope 1Ox wide field eyepieces 7-45x zoom-objectlve | 45° view, zoom feature | 12 V 20 W incident and transmitted light, continuously odjustable | Continuous magnification, third tubular feature to conned to photo and vtdeo camera |
